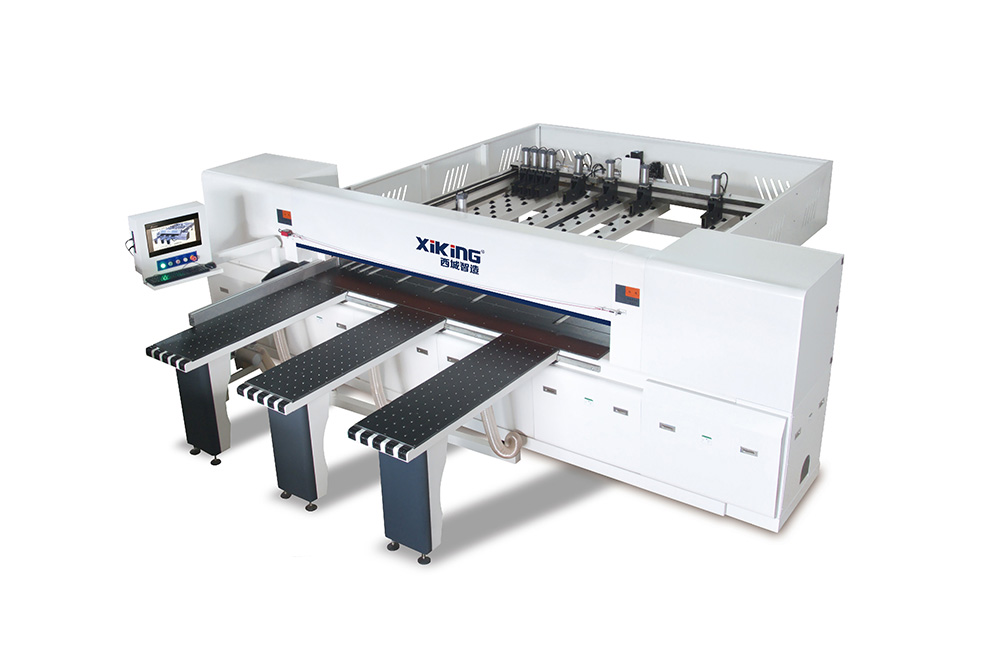

NP330智能電腦裁板鋸
參數配置
| 鋸切長度 | Max.cutting length | 3350mm |
| 鋸切厚度 |
Max.cutting thickness |
90mm |
| 主鋸片直徑 |
Main saw blade diameter |
φ400mm |
| 主鋸片軸徑 |
Main saw blade inner diameter |
φ30mm |
| 主鋸片轉速 |
Main saw rotating speed |
4800rpm |
| 槽鋸片直徑 |
Scoring saw blade diameter |
φ180mm |
| 槽鋸片軸徑 |
Scoring saw blade inner diameter |
φ30mm |
| 槽鋸片轉速 |
Scoring saw blade rotating speed |
6500rpm |
| 鋸座前進速度（無級） |
Saw carriage forward speed adjustable |
1~60m/min |
| 鋸座后退速度 | Saw carriage backward speed |
100m/min |
| 主鋸電機 |
Main saw motor |
13kw |
| 鋸座驅動電機 | Saw carriage driving motor |
1.5kw |
| 自動送料電機 |
Automatic feeding speed |
1.5kw（AC Servomotor） |
| 總功率 | Total power |
20.2kw |
| 自動送料速度 |
Automatic feeding speed |
42m/min |
| 使用氣壓 | Air pressure |
5-7kg/c㎡ |
| 工作臺離地高度 |
Working table height from floor |
900mm |
| 凈重 | Weight |
6200kg |
| 機器尺寸 |
Dimensions（LxWxH） |
5830x6630x1750mm |
